Main Features
1. It is applied to different drilling conditions, like soil , gravel, soft rocks, hard rocks,etc.
2. Fully hydraulic control, mounted on truck, with easy operation and transportation.Â
3. Four hydraulic standing legs for stable working.Â
4. Automatic loading and unloading drill rods, automatic clearing wells.Â
5. Using Air compressor , mud pump, DTH hammer Drilling Tools , highly efficient for hard rocks.Â
6. Movebase: Six-wheel type, Crawler type and Truck mounted type for your Choice.
Product Parameters
Â
No. |
Item |
Specification |
1 |
Drilling caliber |
Φ105-305mm/Φ4"-12" |
2 |
Max. drilling depth |
200m |
3 |
Diameter of Drill Pipe |
Φ89 |
4 |
Unit Length of drill pipe |
3000mm |
5 |
Work pressure |
1-3.45 MPa |
6 |
Gas consumption |
16-55 m³/min |
7 |
DTH Hammer |
DHD380 |
8 |
Apply to rock hardness |
f=6-12 |
9 |
Power |
50Kw/2200rpm |
10 |
Walking speed |
60Km/h |
11 |
Weight |
6500 Kg |
Transaction Record
Payment terms
T/T,L/C,Western Union,Pay Pal,etc.
Packaging & Shipping
|
Packing Details  | |
|
 |
40' HQ container |
|
 |
L5500 x W2000 x H2400 , 24.2m3; |
|
 |
10 ton |
Contact Information
Any questions, please send E-mail or scan QR code and add my WeChat.
Â
Â
.Â
Main Features
1. It is applied to different drilling conditions, like soil , gravel, soft rocks, hard rocks,etc.
2. Fully hydraulic control, mounted on truck, with easy operation and transportation.Â
3. Four hydraulic standing legs for stable working.Â
4. Automatic loading and unloading drill rods, automatic clearing wells.Â
5. Using Air compressor , mud pump, DTH hammer drilling tools, highly efficient for hard rocks.Â
6. Movebase: Six-wheel type, Crawler type and Truck mounted type for your Choice.
Product Parameters
Â
No. |
Item |
Specification |
1 |
Drilling caliber |
Φ105-305mm/Φ4"-12" |
2 |
Max. drilling depth |
200m |
3 |
Diameter of drill pipe |
Φ89 |
4 |
Unit Length of drill pipe |
3000mm |
5 |
Work pressure |
1-3.45 MPa |
6 |
Gas consumption |
16-55 m³/min |
7 |
DTH Hammer |
DHD380 |
8 |
Apply to rock hardness |
f=6-12 |
9 |
Power |
50Kw/2200rpm |
10 |
Walking speed |
60Km/h |
11 |
Weight |
6500 Kg |
Transaction Record
Payment terms
T/T,L/C,Western Union,Pay Pal,etc.
Packaging & Shipping
|
Packing Details  | |
|
 |
40' HQ container |
|
 |
L5500 x W2000 x H2400 , 24.2m3; |
|
 |
10 ton |
Contact Information
Any questions, please send E-mail or scan QR code and add my WeChat.
Â
Drilling depth: 150m to 200m
Drilling diameter: 130-219mm
Engine Power: 30Hp

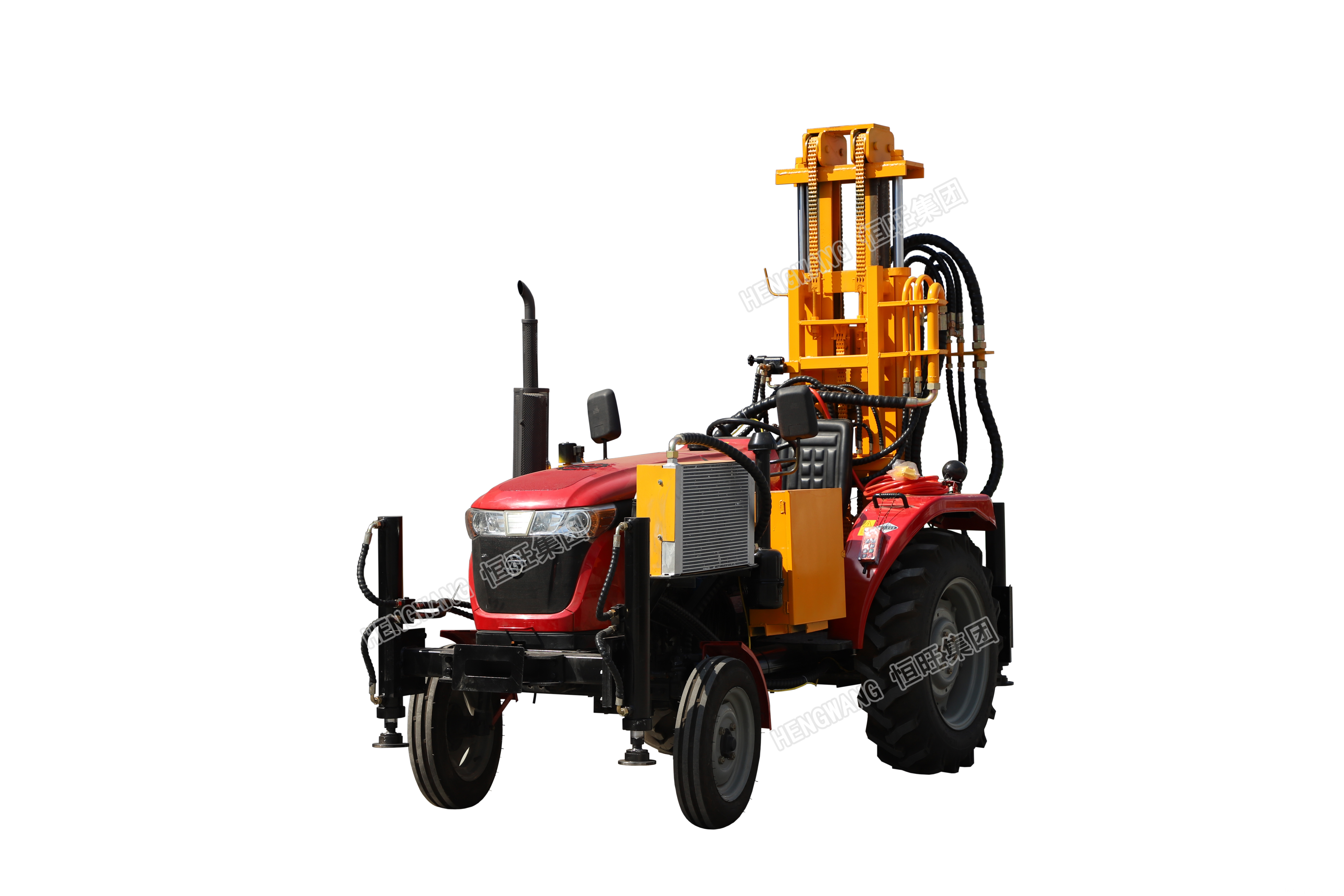

Tractor pneumatic drilling rig with new DTH impact technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi - cylinder engine produced by famous factory provides power for the hydraulic system, two grade air filter and air compressor intake design to prolong the diesel engine service life.
This product is an integrated drilling equipment by combining tractor and Pneumatic Water Well Drilling Rig,which is easy to walk and combined the air compressor . Make the construction more convenient and efficient.
Drilling Rig Main Features:
Tractors pneumatic Water Well Drilling Rig according to the user needs could be matched with different horsepower tractor chassis, different specification drilling tools, air compressor, DTH impactor and blast pipe, apply for variety of specifications.
Tractor pneumatic wells Drilling Machine is applicable to civil engineering drilling, geothermal drilling, with large diameter and deep drilling footage, fast, mobile and flexible, wide use of regions advantages, combined the advantages of drilling machine and tractor.
